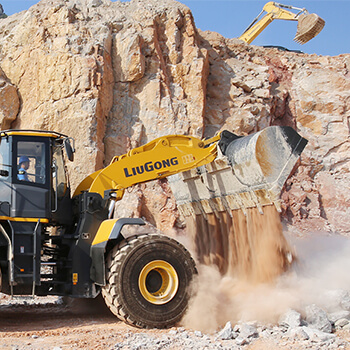

- Reinforced rock bucket with thickened plate is made especially for loading aggregates in mines.
- Heavy-duty wet type brake axle and braking system ensure the reliability and durability of the product even under tough work conditions.
- ROPS/FOPS certified cab for operator safety and reliable operation in tough conditions.
- Fully-sealing and micro-pressuring system ensures the cab is clean and quiet. Silicone oil shock absorber reduces vibration and improves ride comfort.
890H
Operating weight:
31,245 - 31,600 kg
Rated power:
250 / 261 kW
Rated load capacity:
9,000 kg
Product Features
890H
890H
890H
890H
890H
890H
Specifications
| Operating weight | 31,245 kg |
| Standard bucket | 5.4 m³ |
| Rated power | 261 kW (350 hp / 355 ps) @ 2,100 rpm |
| Maximum gross power | 287 kW (385 hp / 390 ps) @ 2,100 rpm |
| Rated load capacity | 9,000 kg |
| Hydraulic cycle time | 11 s |
| Raise time | 6 s |
| Maximum travel speed | 38 km/h |
| Tipping load-full turn | 20,320 kg |
| Bucket breakout force | 235 kN |
| Dump clearance, full height discharge | 3,330 mm |
| Dump reach, full height discharge | 1,479 mm |
| Model | Cummins QSM11 |
| Emissions | EPA Tier 3 / EU Stage III |
| Aspiration | Turbocharged & air-to-air intercooled |
| Length with bucket down | 9,450 mm |
| Width over tires | 3,170 mm |
| Cab height | 3,765 mm |
| Turning radius, outside of tire | 6,958 mm |
| Bucket capacity | 4.0-9.0 m³ |
| General Purpose bucket | 5.4 m³ |
| Light material bucket | 6.7, 7.2, 8.0, 9.0 m³ |
| Rock bucket | 4.5, 5.2 m³ |
| Download Brochure |
| Operating weight | 31,600 kg |
| Standard bucket | 5.4 m³ |
| Rated power | 250 kW (335 hp / 340 ps) @ 2,100 rpm |
| Maximum gross power | 276 kW (370 hp / 375 ps) @ 1,800 rpm |
| Rated load capacity | 9,000 kg |
| Hydraulic cycle time | 11 s |
| Raise time | 6 s |
| Maximum travel speed | 38 km/h |
| Tipping load-full turn | 20,600 kg |
| Bucket breakout force | 236 kN |
| Dump clearance, full height discharge | 3,330 mm |
| Dump reach, full height discharge | 1,464 mm |
| Model | Cummins X12 |
| Emissions | EU Stage V |
| Aspiration | Turbocharged & air-to-air intercooled |
| Length with bucket down | 9,750 mm |
| Width over tires | 3,170 mm |
| Cab height | 3,785 mm |
| Turning radius, outside of tire | 6,958 mm |
| Bucket capacity | 4.0-9.0 m³ |
| General Purpose bucket | 5.4 m³ |
| Light material bucket | 7.2, 8.0, 9.0 m³ |
| Rock bucket | 4.5, 5.2 m³ |
| Download Brochure |
※For reference only.
