- Customized engine is perfectly matched with powertrain for maximum torque output, low fuel consumption;
- Heavy-duty axle, robust frame structure and dependable key components provide long lasting reliability;
- Automatic transmission provides optimum controllability.
- Advanced hydraulics deliver fluid on demand without overflow loss to save energy;
- Pressurized FOPS/ROPS cab, 310°panoramic view, ergonomically design, three-stage vibration reduction offer great safety and comfort;
- Forward-tilting wide opening engine hood, ground level servicing and single layer radiator with large fin spacing provide excellent serviceability in industry.

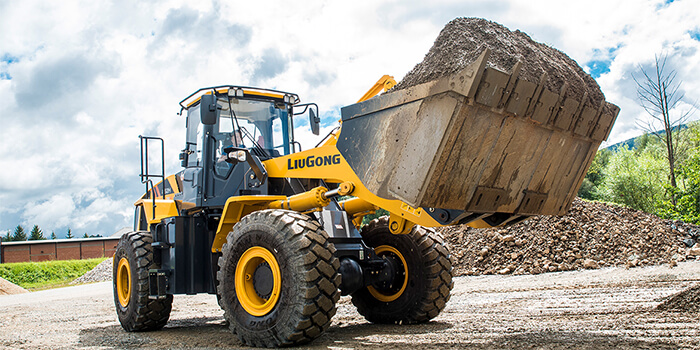

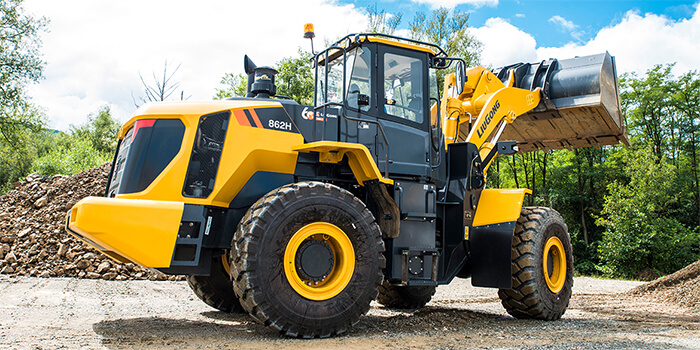

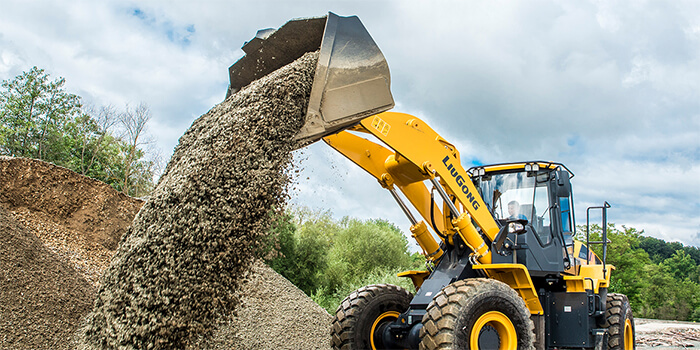

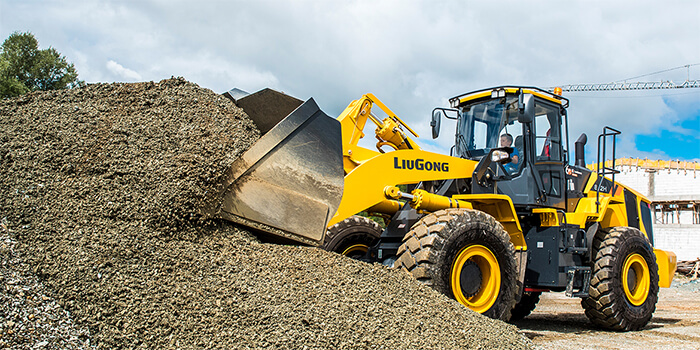

862H
Operating weight:
20,400 - 20,900 kg
Rated power:
179 / 180 kW
Rated load capacity:
6,500 kg
Product Features
862H
862H
862H
862H
Specifications
| Operating weight | 20,400 kg |
| Standard bucket | 4.0 m³ |
| Rated power | 179 kW (240 hp / 243 ps) @ 2,200 rpm |
| Maximum gross power | 179 kW (240 hp / 243 ps) @ 2,200 rpm |
| Rated load capacity | 6,500 kg |
| Hydraulic cycle time | 9.3 s |
| Raise time | 5.2 s |
| Maximum travel speed | 35 km/h |
| Tipping load-full turn | 14,200 kg |
| Bucket breakout force | 180 kN |
| Dump clearance, full height discharge | 3,253 mm |
| Dump reach, full height discharge | 1,122 mm |
| Model | Cummins 6LTAA8.9 |
| Emissions | EPA Tier 2 / EU Stage II |
| Aspiration | Turbocharged ﹠ air-to-air intercooled |
| Length with bucket down | 8,740 mm |
| Width over tires | 2,880 mm |
| Cab height | 3,500 mm |
| Turning radius, outside of tire | 6,650 mm |
| Bucket capacity | 3.0-6.0 m³ |
| General Purpose bucket | 4.0 m³ |
| Light material bucket | 5.8, 7.2 m³ |
| Rock bucket | 3.3, 4.0 m³ |
| Download Brochure |
| Operating weight | 20,636 kg |
| Standard bucket | 4.0 m³ |
| Rated power | 180 kW (241 hp / 245 ps) @ 2,200 rpm |
| Maximum gross power | 190 kW (255 hp / 258 ps) @ 2,200 rpm |
| Rated load capacity | 6,500 kg |
| Hydraulic cycle time | 9.3 s |
| Raise time | 5.2 s |
| Maximum travel speed | 38 km/h |
| Tipping load-full turn | 14,742 kg |
| Bucket breakout force | 178 kN |
| Dump clearance, full height discharge | 3,253 mm |
| Dump reach, full height discharge | 1,122 mm |
| Model | Cummins QSL9.3 |
| Emissions | EPA Tier 3 / EU Stage III |
| Aspiration | Turbocharged ﹠ air-to-air intercooled |
| Length with bucket down | 8,847 mm |
| Width over tires | 2,880 mm |
| Cab height | 3,500 mm |
| Turning radius, outside of tire | 6,687 mm |
| Bucket capacity | 3.0-6.0 m³ |
| General purpose bucket | 4.5 m³ |
| Light material bucket | 5.8, 7.2 m³ |
| Rock bucket | 3.3, 4.0 m³ |
| Download Brochure |
※For reference only.
