- The engine is perfectly matched to the transmission chain and hydraulic system, for more efficiency and less wastage.
- The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
- 309° panoramic visibility gives the operator a very comfortable work environment in the cab. Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
- Single layer radiator and big range fin spacing for high efficiency and easy maintenance.

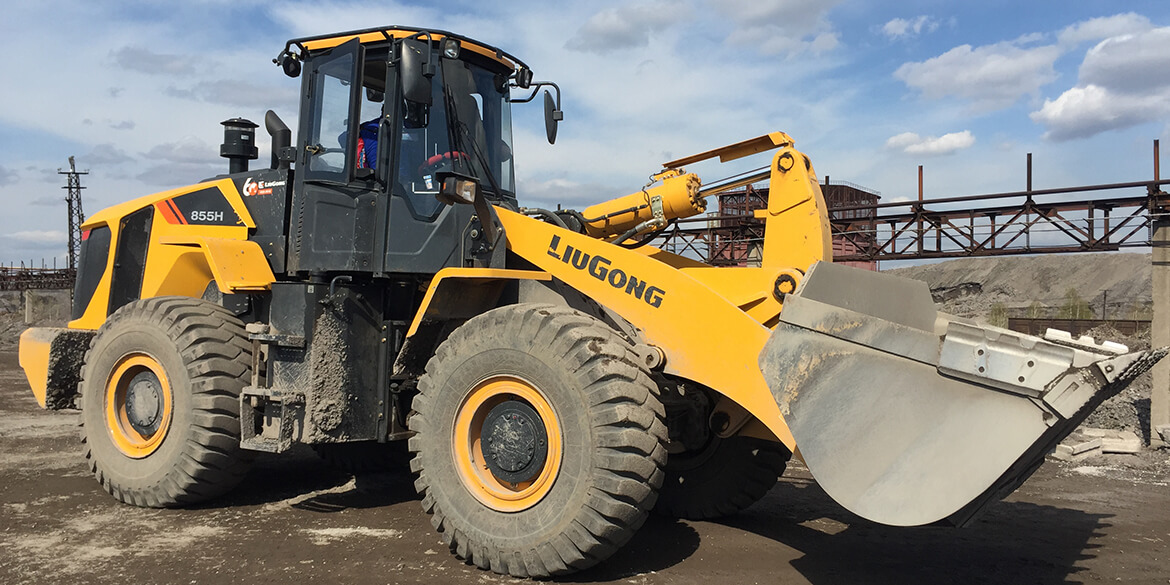

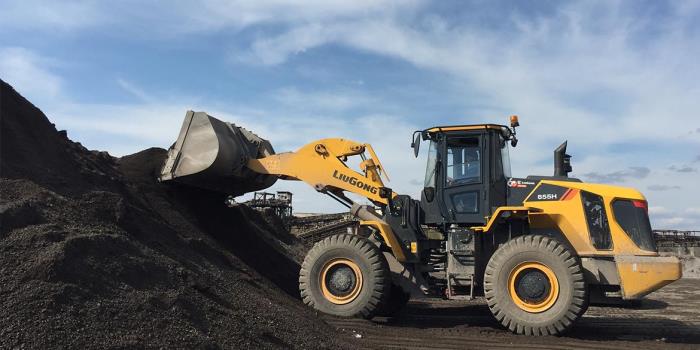

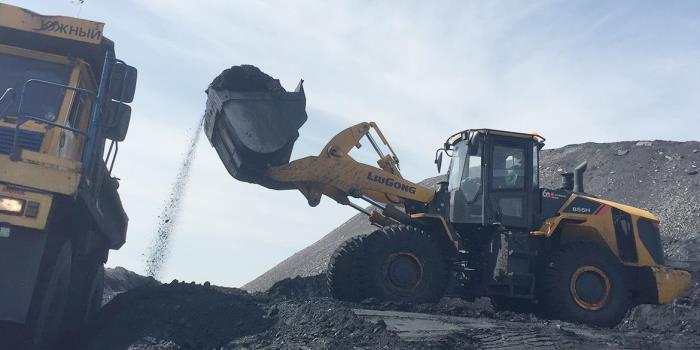

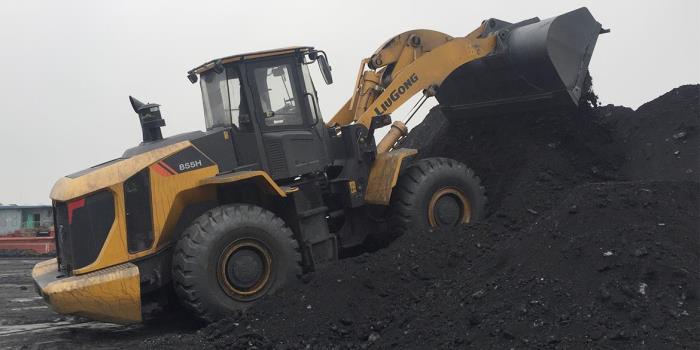

855H
Operating weight:
16,500 kg
Rated power:
162 kW
Rated load capacity:
5,000 kg
Product Features
855H
855H
855H
855H
Specifications
| Operating weight | 16,500 kg |
| Standard bucket | 3.0 m³ |
| Rated power | 162 kW (217 hp / 220 ps) @ 2,000 rpm |
| Maximum gross power | 162 kW (217 hp / 220 ps) @ 2,000 rpm |
| Rated load capacity | 5,000 kg |
| Hydraulic cycle time | 10.3 s |
| Tipping load-full turn | 11,100 kg |
| Bucket breakout force | 165 kN |
| Dump clearance, full height discharge | 3,037 mm |
| Dump reach, full height discharge | 1,168 mm |
| Model | Cummins 6LT9.3 |
| Emissions | EPA Tier 2 / EU Stage II |
| Aspiration | Turbocharged ﹠ air-to-air intercooled |
| Length with bucket down | 8,066 mm |
| Width over tires | 2,750 mm |
| Cab height | 3,500 mm |
| Turning radius, outside of tire | 6,086 mm |
| Bucket capacity | 2.7-4.0 m³ |
| General purpose bucket | 3.0 m³ |
| Light material bucket | 5.6, 6.0 m³ |
| Rock bucket | 2.5, 2.7, 3.0 m³ |
| Download Brochure |
※For reference only.
