- Customized engine, full variable load sensing hydraulics deliver hydraulic fluid on demand resulting in less power loss and higher efficiency;
- Ergo-power automatic transmission enables smooth and comfortable shifting;
- Wet axle with multiple discs delivers better heat dissipation capability and more braking power, maintenance-free.

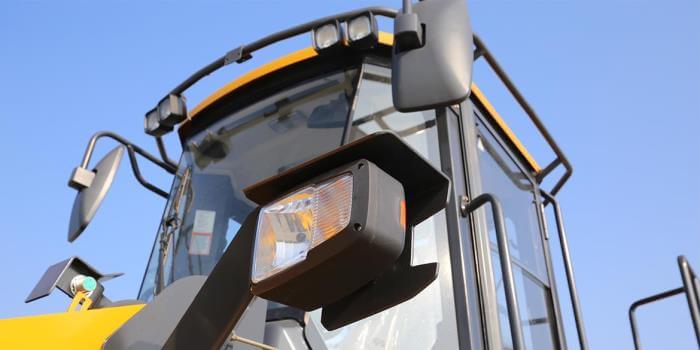

- Pressurized, FOPS&ROPS cab, 309°panoramic view, three-stage vibration offer the operator a safe and comfortable work environment;
- Hydraulic heat dissipation system is able to adjust fan rotating speed according to the system temperature, saving energy and reducing noise; hydraulically driven positive & reverse rotating fan delivers excellent cooling performance and easy to clean;
- One-piece forward-tilting engine hood provide easy access at ground level for maintenance.
848H
Operating weight:
14,790 - 16,500 kg
Rated power:
129 / 135 kW
Rated load capacity:
4,000 / 4,800 kg
Product Features
848H
848H
848H
848H
Specifications
| Operating weight | 14,790 kg |
| Standard bucket | 3.0 m³ |
| Rated power | 135 kW (181 hp / 184 ps) @ 2,200 rpm |
| Maximum gross power | 128 kW (172 hp / 174 ps) @ 2,200 rpm |
| Rated load capacity | 4,000 kg |
| Hydraulic cycle time | 8.9 s |
| Raise time | 4.8 s |
| Maximum travel speed | 40 km/h |
| Tipping load-full turn | 8,500 kg |
| Bucket breakout force | 105 kN |
| Dump clearance, full height discharge | 2,660 mm |
| Dump reach, full height discharge | 1165 mm |
| Model | Cummins QSB7 |
| Emissions | EPA Tier 3 / EU Stage IIIA |
| Aspiration | Turbocharged ﹠ air-to-air intercooled |
| Length with bucket down | 8,075 mm |
| Width over tires | 2,548 mm |
| Cab height | 3,310 mm |
| Turning radius, outside of tire | 5,200 mm |
| Bucket capacity | 2.5-6.0 m³ |
| General purpose bucket | 2.5 m³ |
| Light material bucket | 6.0 m³ |
| Rock bucket | / |
| Download Brochure |
| Operating weight | 16,500 kg |
| Standard bucket | 2.7 m³ |
| Rated power | 129 kW (173 hp / 175 ps) @ 2200 rp |
| Maximum gross power | 145 kW (194 hp / 197 ps) @ 2200 rpm |
| Rated load capacity | 4,800 kg |
| Hydraulic cycle time | 9.9 s |
| Raise time | 5.2 s |
| Maximum travel speed | 39 km/h |
| Tipping load-full turn | 10,292 kg |
| Bucket breakout force | 117 kN |
| Dump clearance, full height discharge | 2,774 mm |
| Dump reach, full height discharge | 1,170 mm |
| Model | Cummins B6.7 |
| Emissions | Stage V |
| Aspiration | Turbocharged ﹠ air-to-air intercooled |
| Length with bucket down | 8,030 mm |
| Width over tires | 2,670 mm |
| Cab height | 3,394 mm |
| Turning radius, outside of tire | 5,475 mm |
| Bucket capacity | 1.8-4.0 m³ |
| General purpose bucket | 2.7 m³ |
| Light material bucket | / |
| Rock bucket | / |
| Download Brochure |
※For reference only.
