- Reinforced rock bucket with thickened plate is made especially for loading aggregates in mines.
- Heavy-duty wet type brake axle and braking system ensure the reliability and durability of the product even under tough work conditions.
- ROPS/FOPS certified cab for operator safety and reliable operation in tough conditions. 309° panoramic visibility gives the operator a very comfortable work environment in the cab.
- Fully-sealing and micro-pressuring system ensures the cab is clean and quiet. Silicone oil shock absorber reduces vibration and improves ride comfort.

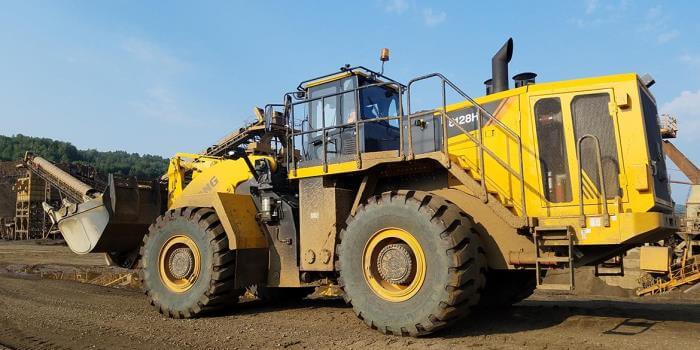

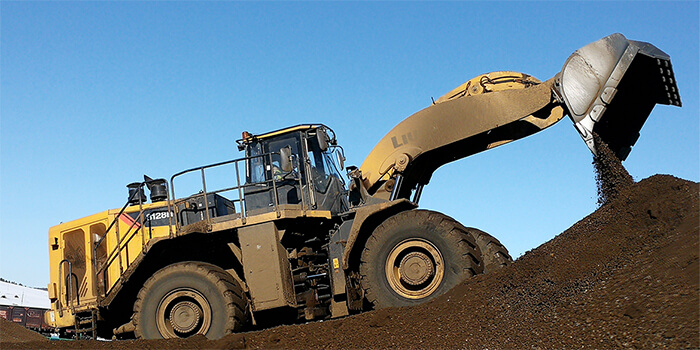

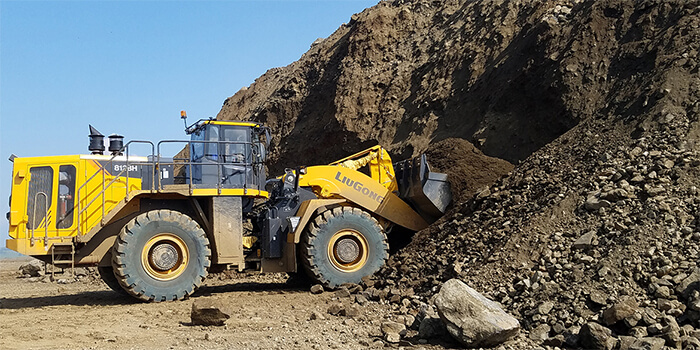

8128H
Operating weight:
52,100 kg
Rated power:
418 kW
Rated load capacity:
12,000 kg
Product Features
8128H
8128H
8128H
8128H
Specifications
| Operating weight | 52,100 kg |
| Standard bucket | 7.0 m³ |
| Rated power | 418 kW (561 hp / 568 ps) @ 2,000 rpm |
| Maximum gross power | 419 kW (562 hp / 570 ps) @ 2,000 rpm |
| Rated load capacity | 12,000 kg |
| Hydraulic cycle time | 14.58 s |
| Raise time | 8.5 s |
| Maximum travel speed | 36 km/h |
| Tipping load-full turn | 31,200 kg |
| Bucket breakout force | 432 kN |
| Dump clearance, full height discharge | 4,094 mm |
| Dump reach, full height discharge | 1,861 mm |
| Model | Cummins QSK19 |
| Emissions | EPA Tier 3 / EU Stage III |
| Aspiration | Turbocharged & air-to-air intercooled |
| Length with bucket down | 11,847 mm |
| Width over tires | 3,590 mm |
| Cab height | 4,195 mm |
| Turning radius, outside of tire | 7,620 mm |
| Bucket capacity | 6.0-12 m³ |
| General Purpose bucket | 7.0 m³ |
| Light material bucket | 11.0, 12.0 m³ |
| Rock bucket | 6.0, 7.0 m³ |
| Download Brochure |
※For reference only.
